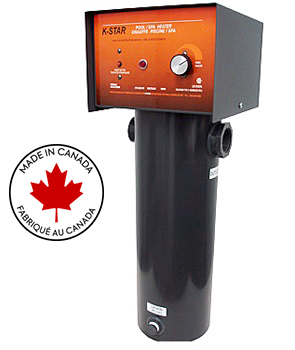

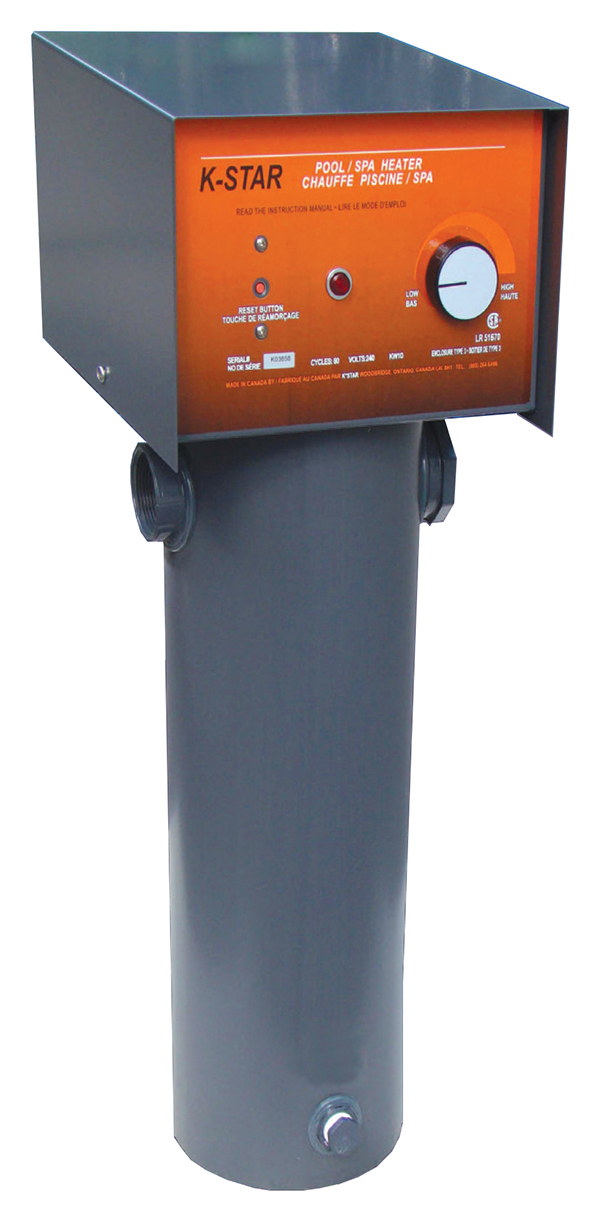

K-STAR ELECTRIC MECHANICAL HEATERS

K-STAR Electric Mechanical Heaters are available with Stainless Steel Incoloy-Sheathed Elements for NON-SALT WATER applications and with TITANIUM Elements for SALT WATER applications.

• Recommended for residential above-ground pools, small inground pools and small residential spas.
• Available in 5KW, 10KW & 15KW
• ALL Models are 1 PHASE, 240 VOLT

NOTE: For commercial applications, please refer to our COATES Electric Pool/Spa Heaters

ELECTRIC MECHANICAL POOL/SPA HEATERS - REGULAR ELEMENTS
K-STAR Electric Mechanical Heaters for NON-SALT WATER applications come with Stainless Steel Incoloy-Sheathed Elements for longer life and are for use in Non-Salt Water applications only.


FEATURES:

• Mechanical Temperature Control
• Operating Indicator Light
• High limit manual control reset
• Copper grounding lugs
• Stainless Steel Incoloy-Sheathed elements for longer life
• PVC impact-resistant tank
• Winterizing drain plug
• Keeps Temperatures constant up 104ºF (40ºC)
• 1.5" O.D. Inlet / Outlet Connections
• Proudly MADE IN CANADA

ELECTRIC MECHANICAL POOL/SPA HEATERS - TITANIUM ELEMENTS
K-STAR Electric Mechanical Heaters for SALT WATER applications are specially designed with TITANIUM Elements for Salt Water applications only.

FEATURES:

• Mechanical Temperature Control
• Operating Indicator Light
• High limit manual control reset
• Copper grounding lugs
• TITANIUM elements for longer life in salt water pools
• PVC impact-resistant tank
• Winterizing drain plug
• Keeps Temperatures constant up 104ºF (40ºC)
• 1.5" O.D. Inlet / Outlet Connections
• Proudly MADE IN CANADA

The K-STAR Electric Digital Pool Heater is for comfort and heat when you need it. Swimming anytime is more fun when the water temperature is right. Your whole family will get more enjoyment and more use of your pool and spa with a K-STAR Electric Digital Heater. Whether you want to extend your swimming season from earlier spring into the fall, maintain comfortable pool temperatures all the time, or have your spa ready even in frigid winter weather, K-STAR Electric Digital Heaters can do it for you.


How Do Electric Pool and Spa Heaters Work?

An electric pool heater creates heat in your pool or spa by applying an electrical current to an element with resistance, which generates heat. The electric heater passes water over the element to heat it, circulating the warm water back into the pool or hot tub until the desired temperature is reached. Electric pool heaters are most appropriate for heating spas and small above ground pools.


How Much Will It Cost To Run?

The following formula is used to determine the cost per day:
Power  X  Hours per day  X  Price per kWh

For this scenario we are going to use a K5 (which is a 5 kW unit), for 24 hours at an estimated $0.10 per kWh.
5 kW  X  24 Hours  X  .10 = $12.00 to run this unit, per day.

Note: This is an estimated price, as once the pool is heated, the unit will turn the heating elements on and off to maintain the temperature of the water rather than running at full power all the time.


HEATER SIZING CHART

Note: All figures are approximate and based on a constant depth of 48" and a desired temperature increase of 10 degrees. Use chart only as a guideline.


IMPORTANT NOTES:

Please refer to our K-Star Owner/Installation Manual Regarding:
• Proper Installation (i.e. consideration of maximum Flow Rates; etc.)
• When installations require Current Collectors as per electrical code
• Warranty criteria (i.e. Salt-Chlorine Systems; etc.)

Leakage Current Collectors (not supplied with purchase):
Leakage Current Collectors may be required with your Heater installation; consult your local Electrical Safety Authority (ESA) to determine if Leakage Current Collectors are mandatory in your jurisdiction - *Please note that the Canadian Electrical Code only requires Leakage Current Collectors for Hot Tub applications.

This unit is to be hardwired and serviced by a licensed electrician.

This heater is not to be used on any soft sided above ground pools.

Warranty Coverage:
K-Star Electric Heaters come with a 1 Year Limited Manufacturer's Warranty with only 90 Days Limited Warranty on Heating Elements. Consolidated Pool & Spa Industries warrants electric heaters against defects on workmanship and materials. This warranty will be void if the electric heater is damaged as a result of improper installation or use, or if damage is a result of ice or chemical imbalance. This warranty does not cover any labour charges, cost of lost water or chemicals, or any other damages that may occur.
